Technology

Optical Design that Transforms Ideas into Precision

Design solutions that start from customer requirements and connect to sophisticated optical systems.
With integrated design capabilities considering optical systems, mechanical structures, and thermal characteristics, we realize precision for specialized, space, and high-tech industries.

Optical & Mechanical Design

  • Optical Design: Reflective optical systems, illumination optical systems, SWIR, MWIR, and athermalization, tolerance analysis
  • Mechanical Design: Optomechanical design, moving parts (field conversion, focus adjustment), structural analysis, vibration analysis
  • Electronic Design: Electronic/control system design, S/W, LOGIC design, FPGA design, EMI design

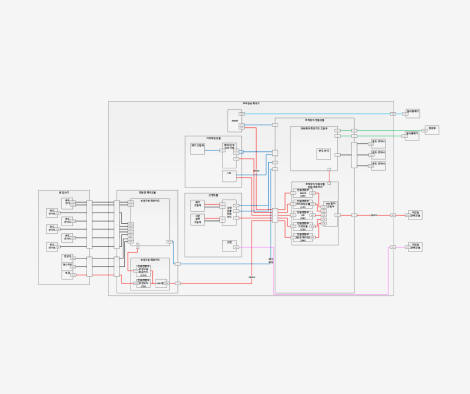

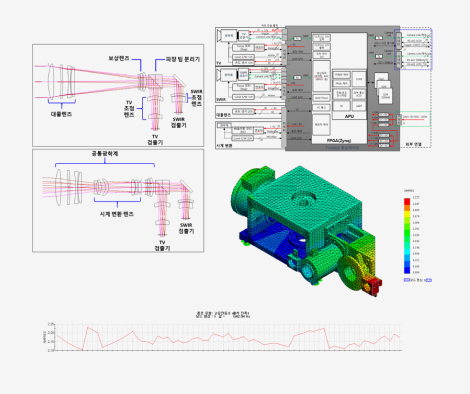

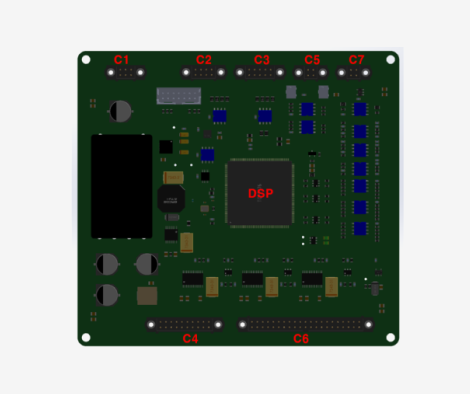

The examples of Optical, Mechanical, and Electronic Design

Design Analysis Capabilities

  • Providing optimal design standards through diverse experience from general industries such as semiconductors and displays to special and space optics fields
  • Application and verification of structural/dynamic analysis programs to suit various environmental conditions

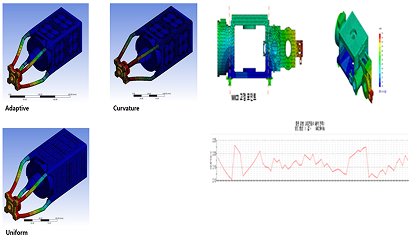

Structural Analysis
Analyzing the stability and influence of mechanical design through finite element analysis, determining safety margins of optical systems through simulation to examine whether the rigidity of lightweight large reflectors is sufficient

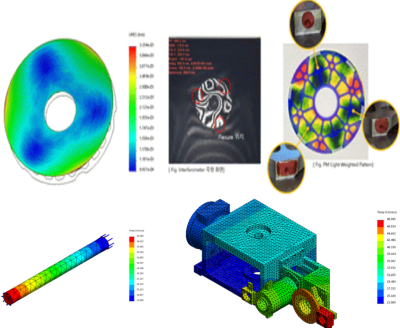

Lightweight analysis of mirror considering the operating environment
Thermal Analysis
Analyzing the effects of heat on optical equipment performance within operating temperature ranges and whether optical equipment is structurally safe against thermal stress, applicable to athermal design of equipment
Optical system performance change analysis through thermal stress simulation
Vibration Analysis
Predicting resonance phenomena of optical equipment due to input frequency through natural frequency analysis, enabling a design that avoids such phenomena
Optical system & structure change analysis through vibration analysis simulation
